Special Plastic Tool Steel Bar With Extremely Good Mirror Grinding
Chemical Composition(%)
| Grade | C | Si | Mn | P | S | Ni | Mo | Cu | Al |
| 0.06-0.20 | ≤0.35 | 1.40-1.70 | ≤0.030 | ≤0.030 | 2.80-3.40 | 0.20-0.50 | 0.80-1.20 | 0.70-1.30 |
| P21 | 0.10-0.18 | ≤0.35 | 1.70-2.0 | ≤0.030 | ≤0.030 | 2.90-3.40 | 0.20-0.50 | 0.80-1.20 | 0.70-1 |
Available size(mm)
| Plate/Flat Bar Size(mm) | Round bar Size(mm) |
| Thickness | Width | Length | Diameter | Length |
| 10-1100 | 155-2200 | 2000-6000 | 20-200 | 2000-6000 |
Use range
Generally used in the mirror polishing mold, anti-dust, TV filter, cosmetics boxes, precision wrinkles processing molds, office automation equipment, auto parts EDM mold.
Transparent products or products that require smoothness, such as household products, automobiles, cameras, computers and other products on the transparent mold.
● Thickness of not more than 2MM thin sheet, high-efficiency blanking die, die and die impulse mode.
● various scissors, inserts, woodworking blade.
● Thread rolling die and wear-resistant slider.
● cold heading die, thermosetting resin molding.
● Deep drawing die, cold extrusion die
Characteristic
1. Pre-hardened steel, without any heat treatment (factory state: age hardening, HRC37 ~ 42 ℃);
2. The most suitable for pre-polished steel mirror processing;
3 discharge machining characteristics:
4. ① after treatment of the surface is very good, can replace the etching processing;
4. ② in the discharge (EDM) processing, the surface hardness will not increase, which can simplify the subsequent processing steps.
5. Good weldability, surface scraps will not be hardened, which can simplify the subsequent process;
6. Toughness, excellent mechanical properties, reduce the fear of rupture and other issues.
Grinding processability
than other steel easy to reach the mirror requirements, because of the following two points:
1) Minimize pinholes due to double melting and refining.
2) Because it is low-carbon precipitation hardened steel, but with a detailed and uniform microstructure. Before grinding and polishing, the surface must first achieve the required flatness, straightness, and the correct shape and size.
Performance comparison
In addition to the various features of the NAK55, the has the following features:
1, Mirror grinding is extremely good.
2, EDM surface meticulous, beautiful, therefore, can replace pears eclipse flowers.
Use comparison
compared with the NAK55, suitable for the following performance occasions:
1, Transparent products, such as emphasis on mirror grinding
2, Pay attention to the EDM surface
Our Advantages
1. High quality and professional manufacturer

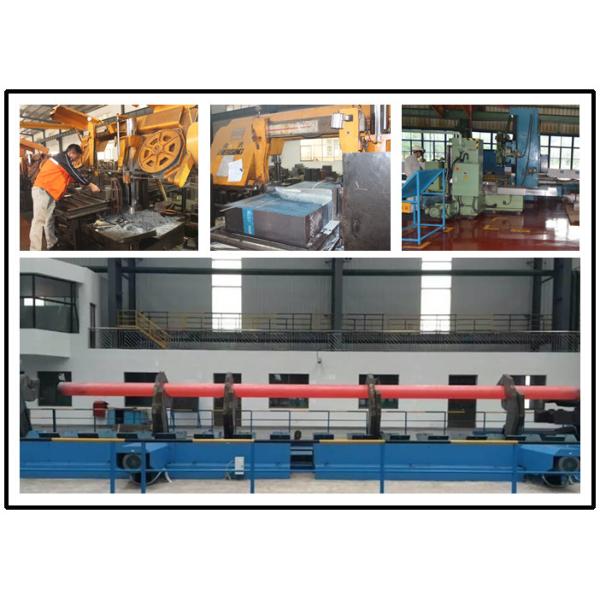

2. Advanced equipments for testing and manufacturing
3. Customized service according to your inquiry
4. Short lead time
5. Good after-sale service
